告别单调！10 套高颜值 Obsidian Canvas 配色方案分享
为 Canvas 提供 10 套主题配色，配色方案参考了论文图表常用色系以及 xmind 的配色方案，适配浅色/深色模式与演示、知识整理、创意草图等场景。支持在 Style Settings 中一键切换方案、开启卡片渐变背景、调节边框宽度与透明度，确保信息分组清晰、对比适中、层次明确，长时间阅读不疲劳。

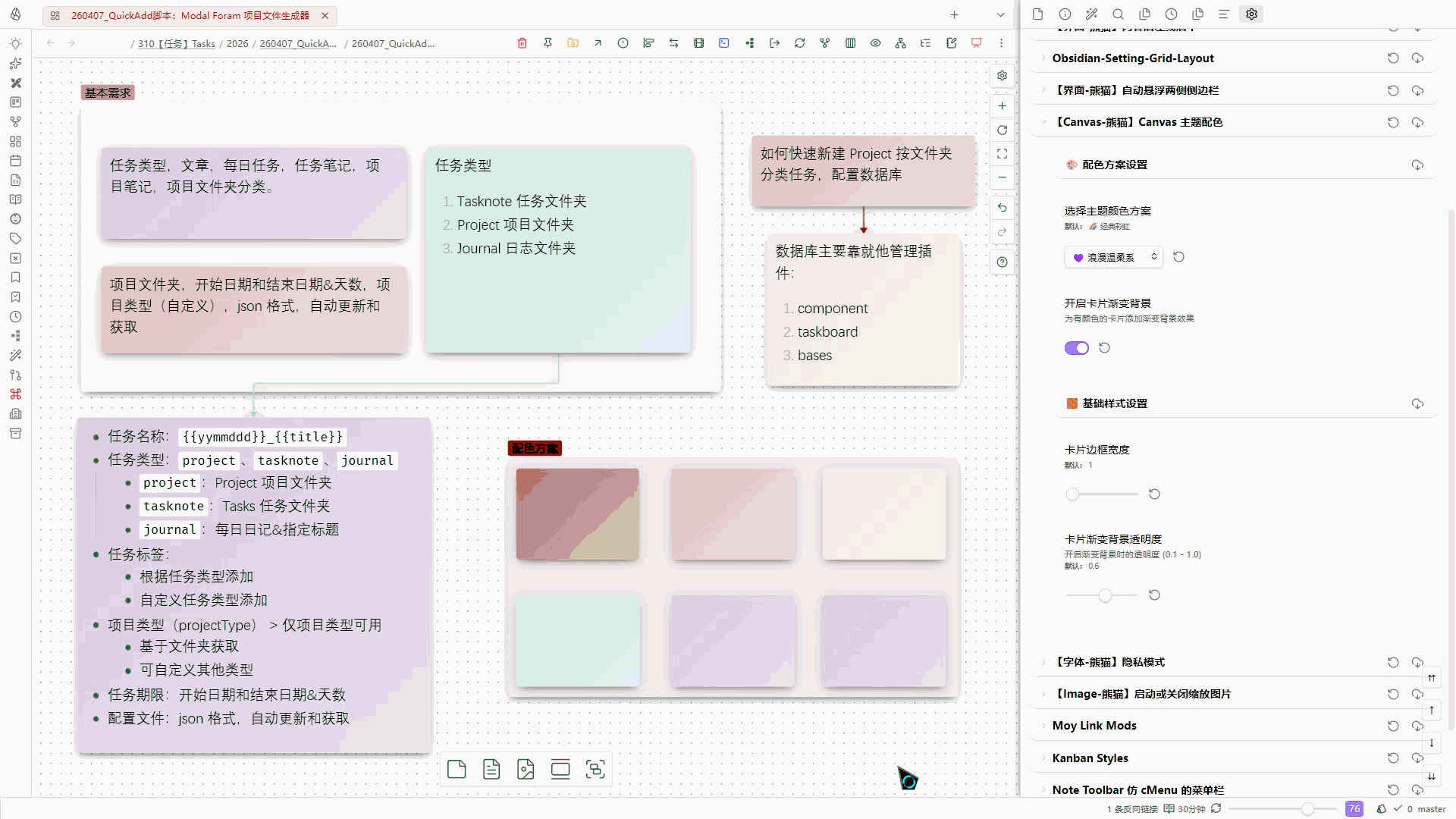

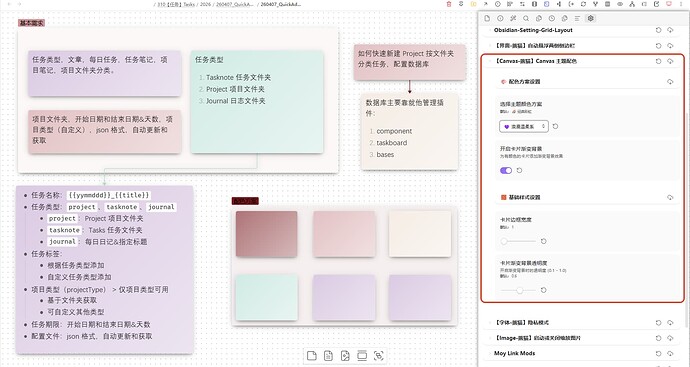

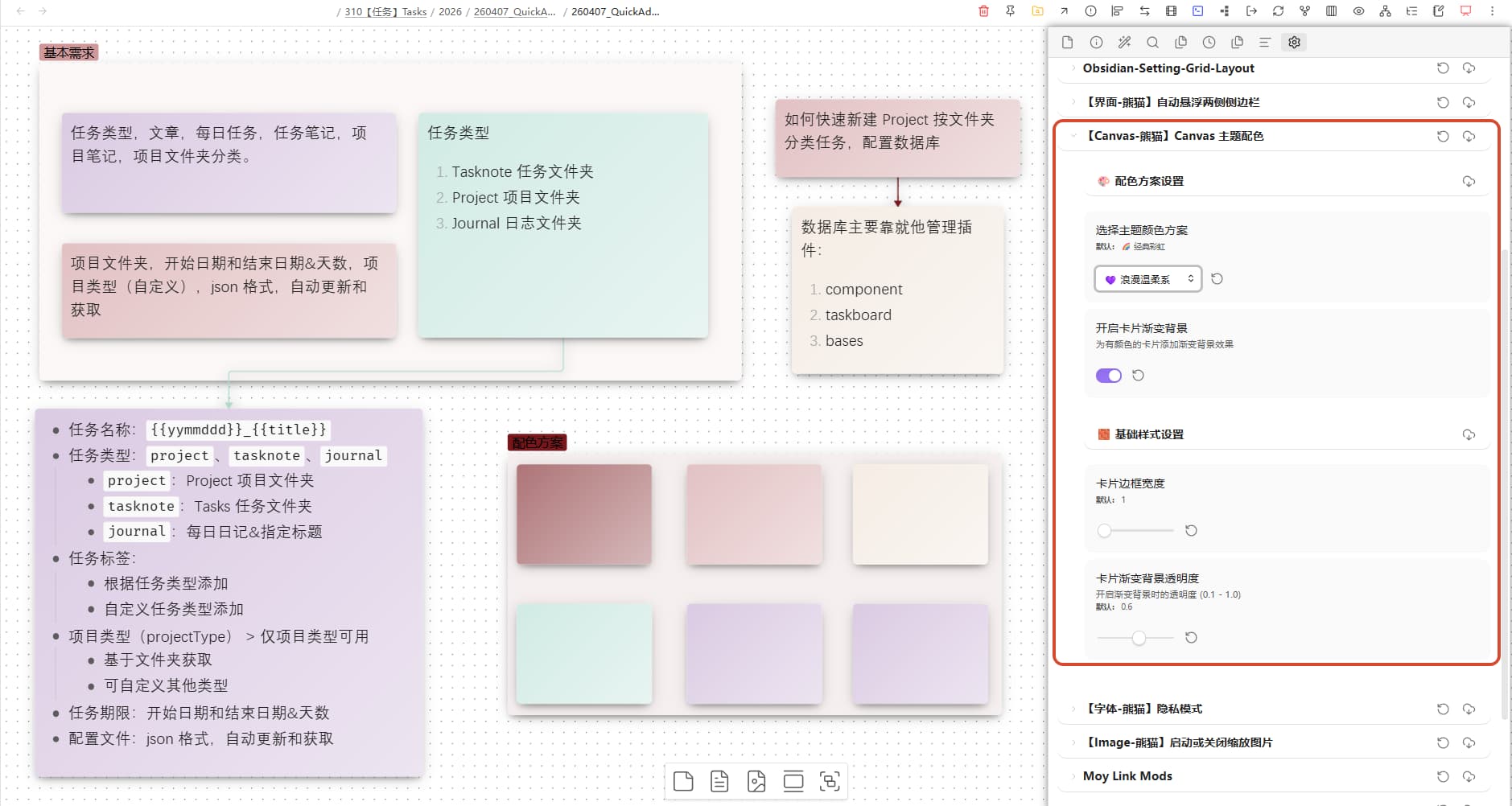

在 Style Settings 中选择“Canvas 主题配色”切换方案；可开启“卡片渐变背景”并调整边框宽度与透明度。
样式功能
- 多风格方案：内置经典彩虹、顶刊学术、马卡龙等 10 套主题，深浅模式全适配。
- 视觉增强：支持卡片渐变与阴影效果，提升画布质感。
- 细节优化：增强 Canvas 组（Groups）拖拽手感。
Snippets CSS
/*
@settings
name: 【Canvas-熊猫】Canvas 主题配色
id: canvas-schemes-schemes
settings:
-
id: canvas-color-scheme-heading
title: 🎨 配色方案设置
type: heading
level: 1
-
id: canvas-schemes-theme
title: 选择主题颜色方案
type: class-select
allowEmpty: false
default: canvas-schemes-rainbow
options:
-
label: 🟣 Ob 默认
value: canvas-default
-
label: 🌈 经典彩虹
value: canvas-schemes-rainbow
-
label: 🎭 柔和渐变
value: canvas-schemes-soft
-
label: 💼 商务蓝
value: canvas-schemes-business
-
label: 🌿 自然绿
value: canvas-schemes-nature
-
label: 🔴 中国红
value: canvas-schemes-china-red
-
label: 💜 东方紫
value: canvas-schemes-purple
-
label: 📊 顶刊经典
value: canvas-schemes-classic
-
label: 💙 蓝色渐变系
value: canvas-schemes-blue
-
label: 🎨 复古学术风
value: canvas-schemes-vintage
-
label: 💜 浪漫温柔系
value: canvas-schemes-romantic
-
label: 🌸 马卡龙 pastel
value: canvas-schemes-macaron
-
id: canvas-card-gradient-toggle
title: 开启卡片渐变背景
description: 为有颜色的卡片添加渐变背景效果
type: class-toggle
default: true
-
id: canvas-basic-settings
title: 🧱 基础样式设置
type: heading
level: 1
-
id: canvas-card-border-width
title: 卡片边框宽度
type: variable-number-slider
format: px
default: 1
min: 0
max: 10
step: 0.5
-
id: canvas-card-gradient-opacity
title: 卡片渐变背景透明度
description: 开启渐变背景时的透明度 (0.1 - 1.0)
type: variable-number-slider
format:
default: 0.6
min: 0.1
max: 1
step: 0.05
*/
/*! canvas 基本样式调整 (宽度和透明度可在 Style Settings 中配置) */
body {
--canvas-card-border-style: solid;
--canvas-card-border-width: 1px;
--canvas-card-gradient-opacity: 0.6;
}
/* 调整卡片的线宽 */
.canvas-node-container {
border-width: var(--canvas-card-border-width);
border-style: var(--canvas-card-border-style);
}
/* 卡片透明度 */
.canvas-node-group {
background-color: var(--background-primary);
}
/* 有色的卡片的卡片透明度 */
.canvas-node.is-themed:not(.canvas-node-group) .canvas-node-content {
background-color: rgba(
var(--canvas-color),
var(--canvas-card-gradient-opacity)
);
}
/* 开启渐变背景时的样式 */
body.canvas-card-gradient-toggle
.canvas-node.is-themed:not(.canvas-node-group)
.canvas-node-content {
background: linear-gradient(
135deg,
rgba(var(--canvas-color), var(--canvas-card-gradient-opacity)) 0%,
rgba(var(--canvas-color), calc(var(--canvas-card-gradient-opacity) / 2))
100%
);
}
/* !设置卡片+连线阴影 @202603291145 */
/* https://forum.obsidian.md/t/cssclasses-for-canvas-cards/71865 */
.canvas-edges > g,
.canvas-edges {
filter: drop-shadow(0 4px 12px rgba(0, 0, 0, 0.2));
}
.canvas-node-container {
box-shadow:
0 8px 19px -13px rgba(0, 0, 0, 0.56),
0 4px 25px 0 rgba(0, 0, 0, 0.12),
0 8px 10px -5px rgba(0, 0, 0, 0.2) !important;
}
/* !设置卡片背景 */
/* 深色模式下的样式 */
.theme-dark {
--canvas-dot-pattern: rgba(255, 255, 255, 0.6);
}
/* 浅色模式下的样式 */
.theme-light {
--canvas-dot-pattern: rgba(0, 0, 0, 0.6);
}
/* !增强拖拽 */
/* 更方便地拖动canvas组/锁定canvas组 */
/* https://forum-zh.obsidian.md/t/topic/42826 */
.canvas-node.canvas-node-group {
pointer-events: auto !important;
}
/* ========================= */
/* commander按钮显示 */
.workspace-leaf-content:not([data-type="canvas"])
[aria-label="QuickAdd: Macro：Canvas Presentations"] {
display: none;
}
/* !设置卡片背景 */

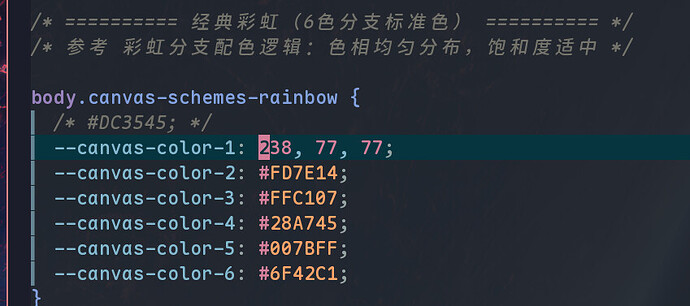

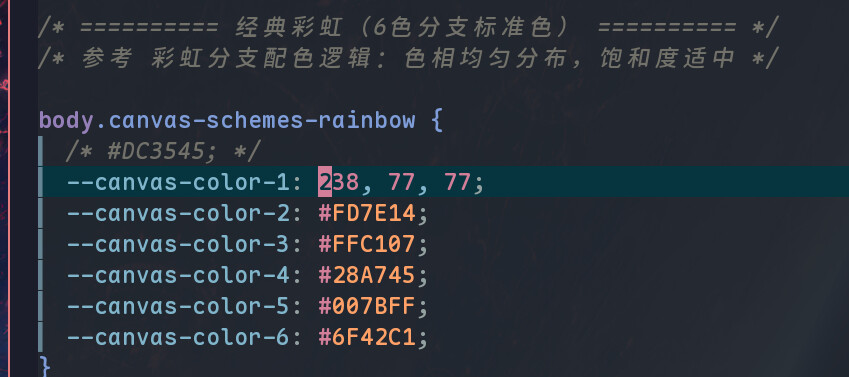

/* ========== 经典彩虹（6色分支标准色） ========== */
/* 参考 彩虹分支配色逻辑：色相均匀分布，饱和度适中 [[1]] */
body.canvas-schemes-rainbow.theme-dark {
--canvas-color-1: 238, 77, 77;
--canvas-color-2: 247, 140, 46;
--canvas-color-3: 245, 190, 45;
--canvas-color-4: 76, 181, 88;
--canvas-color-5: 52, 152, 219;
--canvas-color-6: 155, 89, 182;
}
body.canvas-schemes-rainbow.theme-light {
--canvas-color-1: 220, 53, 69;
--canvas-color-2: 253, 126, 20;
--canvas-color-3: 255, 193, 7;
--canvas-color-4: 40, 167, 69;
--canvas-color-5: 0, 123, 255;
--canvas-color-6: 111, 66, 193;
}
/* ========== 商务蓝（专业/工作汇报） ========== */
body.canvas-schemes-business.theme-dark {
--canvas-color-1: 25, 118, 210;
--canvas-color-2: 66, 165, 245;
--canvas-color-3: 144, 202, 249;
--canvas-color-4: 187, 222, 251;
--canvas-color-5: 41, 121, 255;
--canvas-color-6: 0, 188, 212;
}
body.canvas-schemes-business.theme-light {
--canvas-color-1: 13, 71, 161;
--canvas-color-2: 25, 118, 210;
--canvas-color-3: 66, 165, 245;
--canvas-color-4: 144, 202, 249;
--canvas-color-5: 30, 136, 229;
--canvas-color-6: 0, 151, 167;
}
/* ========== 自然绿（学习/知识整理） ========== */
/* 低饱和度，长时间阅读舒适 [[3]] */
body.canvas-schemes-nature.theme-dark {
--canvas-color-1: 102, 187, 106;
--canvas-color-2: 129, 199, 132;
--canvas-color-3: 165, 214, 167;
--canvas-color-4: 77, 182, 172;
--canvas-color-5: 100, 181, 246;
--canvas-color-6: 149, 117, 205;
}
body.canvas-schemes-nature.theme-light {
--canvas-color-1: 27, 94, 32;
--canvas-color-2: 46, 125, 50;
--canvas-color-3: 76, 175, 80;
--canvas-color-4: 0, 137, 123;
--canvas-color-5: 30, 136, 229;
--canvas-color-6: 81, 45, 168;
}
/* ========== 柔和渐变（创意/灵感收集） ========== */
/* 马卡龙色系，低对比度，视觉柔和 */
body.canvas-schemes-soft.theme-dark {
--canvas-color-1: 244, 143, 177;
--canvas-color-2: 255, 204, 128;
--canvas-color-3: 255, 245, 157;
--canvas-color-4: 165, 214, 167;
--canvas-color-5: 144, 202, 249;
--canvas-color-6: 206, 147, 216;
}
body.canvas-schemes-soft.theme-light {
--canvas-color-1: 194, 24, 91;
--canvas-color-2: 239, 108, 0;
--canvas-color-3: 245, 190, 0;
--canvas-color-4: 56, 142, 60;
--canvas-color-5: 21, 101, 192;
--canvas-color-6: 136, 14, 179;
}
/* ========== 🇨🇳 中国红（传统/节日/文化主题） ========== */
/* 配色灵感：故宫红墙 + 鎏金 + 朱砂 + 胭脂，体现东方典雅 */
/* 渐变色系：从深红到亮金的层次感 */
body.canvas-schemes-china-red.theme-dark {
--canvas-color-1: 222, 41, 16;
--canvas-color-2: 178, 34, 34;
--canvas-color-3: 112, 6, 6;
--canvas-color-4: 255, 191, 0;
--canvas-color-5: 255, 215, 0;
--canvas-color-6: 255, 240, 150;
}
body.canvas-schemes-china-red.theme-light {
--canvas-color-1: 222, 41, 16;
--canvas-color-2: 178, 34, 34;
--canvas-color-3: 139, 0, 0;
--canvas-color-4: 218, 165, 32;
--canvas-color-5: 184, 134, 11;
--canvas-color-6: 255, 215, 0;
}
/* ========== 💜 东方紫（神秘/创意/艺术主题） ========== */
/* 配色灵感：紫禁暮色 + 紫水晶 + 薰衣草，渐变层次丰富 */
body.canvas-schemes-purple.theme-dark {
--canvas-color-1: 102, 51, 153;
--canvas-color-2: 153, 102, 204;
--canvas-color-3: 123, 104, 238;
--canvas-color-4: 221, 160, 221;
--canvas-color-5: 230, 230, 250;
--canvas-color-6: 138, 43, 226;
}
body.canvas-schemes-purple.theme-light {
--canvas-color-1: 75, 0, 130;
--canvas-color-2: 102, 51, 153;
--canvas-color-3: 138, 43, 226;
--canvas-color-4: 153, 102, 204;
--canvas-color-5: 186, 143, 227;
--canvas-color-6: 221, 160, 221;
}
/* ========== 📊 顶刊经典配色（浅色+深色双模式） ========== */
/* 浅色模式 - 柔和学术风 */
body.canvas-schemes-classic.theme-light {
--canvas-color-1: 218, 70, 68;
--canvas-color-2: 238, 178, 125;
--canvas-color-3: 233, 234, 199;
--canvas-color-4: 194, 220, 177;
--canvas-color-5: 220, 239, 246;
--canvas-color-6: 250, 242, 233;
}
/* 深色模式 - 专业深色 */
body.canvas-schemes-classic.theme-dark {
--canvas-color-1: 218, 70, 68;
--canvas-color-2: 238, 178, 125;
--canvas-color-3: 171, 181, 199;
--canvas-color-4: 105, 171, 94;
--canvas-color-5: 48, 139, 188;
--canvas-color-6: 109, 148, 178;
}
/* ========== 💙 蓝色渐变系（专业/科技） ========== */
/* 从浅蓝到深灰的渐变层次 */
body.canvas-schemes-blue.theme-light {
--canvas-color-1: 227, 236, 243;
--canvas-color-2: 192, 228, 252;
--canvas-color-3: 183, 210, 227;
--canvas-color-4: 174, 196, 220;
--canvas-color-5: 192, 228, 252;
--canvas-color-6: 89, 89, 89;
}
body.canvas-schemes-blue.theme-dark {
--canvas-color-1: 227, 236, 243;
--canvas-color-2: 192, 228, 252;
--canvas-color-3: 183, 210, 227;
--canvas-color-4: 130, 160, 190;
--canvas-color-5: 174, 196, 220;
--canvas-color-6: 89, 89, 89;
}
/* ========== 🎨 复古学术风（复古/人文） ========== */
/* 淡紫、米色、橄榄绿、蓝灰、棕色 */
body.canvas-schemes-vintage.theme-light {
--canvas-color-1: 92, 46, 30;
--canvas-color-2: 238, 228, 218;
--canvas-color-3: 208, 208, 234;
--canvas-color-4: 81, 121, 71;
--canvas-color-5: 87, 105, 151;
--canvas-color-6: 208, 208, 234;
}
body.canvas-schemes-vintage.theme-dark {
--canvas-color-1: 150, 100, 80;
--canvas-color-2: 238, 228, 218;
--canvas-color-3: 208, 208, 234;
--canvas-color-4: 120, 160, 110;
--canvas-color-5: 130, 150, 190;
--canvas-color-6: 81, 121, 71;
}
/* ========== 💜 浪漫温柔系（创意/艺术） ========== */
/* 淡紫、薄荷青、粉色、米色、深红 */
body.canvas-schemes-romantic.theme-light {
--canvas-color-1: 119, 23, 28;
--canvas-color-2: 207, 152, 155;
--canvas-color-3: 238, 224, 211;
--canvas-color-4: 179, 221, 211;
--canvas-color-5: 194, 167, 208;
--canvas-color-6: 194, 167, 208;
}
body.canvas-schemes-romantic.theme-dark {
--canvas-color-1: 160, 80, 90;
--canvas-color-2: 207, 152, 155;
--canvas-color-3: 238, 224, 211;
--canvas-color-4: 179, 221, 211;
--canvas-color-5: 194, 167, 208;
--canvas-color-6: 194, 167, 208;
}
/* ========== 🌸 马卡龙 pastel（柔和/可爱） ========== */
/* 超低饱和度的马卡龙色系 */
body.canvas-schemes-macaron.theme-light {
--canvas-color-1: 244, 212, 212;
--canvas-color-2: 245, 223, 166;
--canvas-color-3: 245, 223, 166;
--canvas-color-4: 184, 213, 184;
--canvas-color-5: 187, 212, 240;
--canvas-color-6: 207, 182, 211;
}
body.canvas-schemes-macaron.theme-dark {
--canvas-color-1: 215, 180, 180;
--canvas-color-2: 210, 195, 140;
--canvas-color-3: 210, 195, 140;
--canvas-color-4: 155, 190, 155;
--canvas-color-5: 160, 190, 225;
--canvas-color-6: 170, 150, 190;
}
