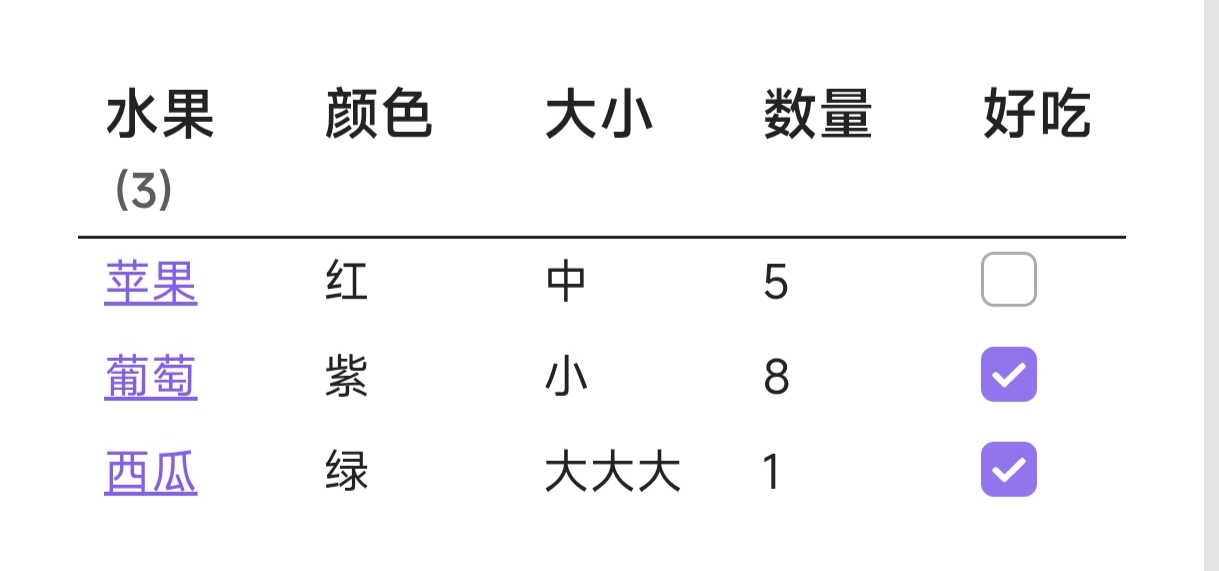

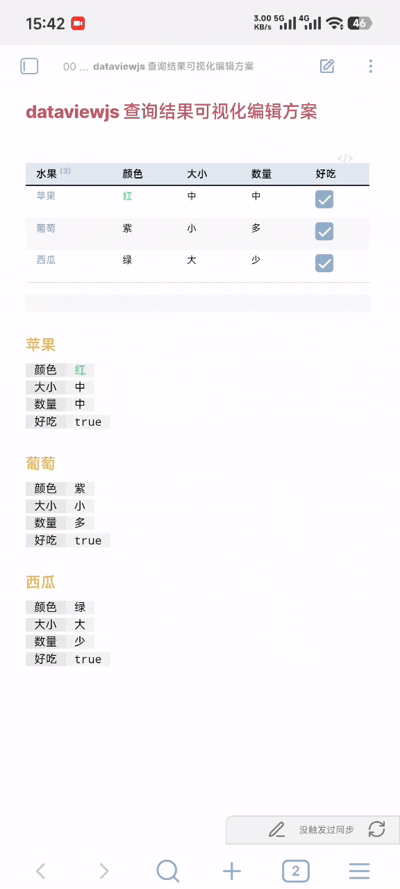

效果演示
更新
1.10 增加可选参数：目标文件路径 tarPath
1.12 增加可选参数，表格处理操作
可设置筛选、排序、条件样式等
1.13 表格处理操作增加：添加行/列等
可实现类似公式的功能
用法示例
```dataviewjs
await dv.view("JS/单篇可视化编辑表格", {

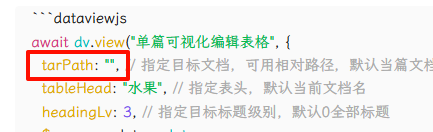

tarPath: "水果", // 指定目标文档，可用相对路径，默认当篇文档
tableHead: "水果", // 指定表头，默认当前文档名
headingLv: 3, // 指定目标标题级别，默认0全部标题
$process: data=>data
.addCss("数量", v=>v>=5, "font-weight:bold;") // 条件样式
.addColor("颜色", v=>v==="红", "red") // 条件颜色
.addFormat("单价", v=>v>=1, "**") //条件格式
//.filter("好吃", v=>v) // 筛选
.colsOrder([0, "数量", "单价"], true) // 列顺序
.colsHide("大小") // 隐藏列
.addCol("总价", (_,r)=>r[1]*r[2]) // 添加列
.sort("总价") // 排序
.reverse() // 逆序
.setValue("葡萄", "好吃", ()=>false) // 设置单元格值
.addRow("总和", (_,c)=>c.reduce((r,c)=>r+=c)) // 添加行
.setHead(5, "花费") // 设置列名
})
```

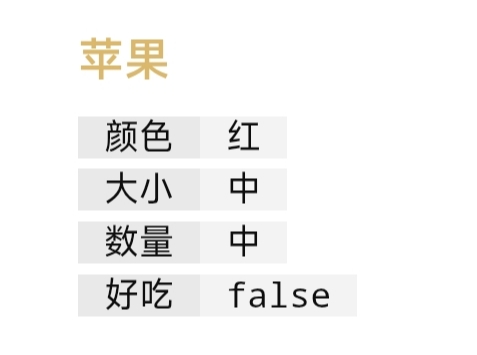

### 苹果
[颜色:: 红]
[大小:: 中]
[数量:: 5]
[单价:: 1]
[好吃:: false]
### 葡萄
[颜色:: 紫]
[大小:: 小]
[数量:: 8]
[单价:: 0.8]
[好吃:: true]
### 西瓜
[颜色:: 绿]
[大小:: 大]
[数量:: 1]
[单价:: 2.5]
[好吃:: true]
### 草莓
[颜色:: 红]
[大小:: 小]
[数量:: 13]
[单价:: 1.2]
[好吃:: true]
js 脚本
/**
* 用法: await dv.view("JS/单篇可视化编辑表格", input)
*
* 为方便表格实时修改，不支持多个同名标题，不支持同标题下多个同名元数据
*/
// 配置参数
const CONFIG = {
// 目标文件路径，默认为当前文件路径；自动转为绝对路径
tarPath: input?.tarPath ?? undefined,
// 表头，默认为文件名
tableHead: input?.tableHead ?? undefined,
// 指定标题级别 (1-6)；null 或 0 表示处理所有级别的标题
headingLv: input?.headingLv ?? 0,
// 是否启用类型转换
enableTypeConversion: input?.enableTypeConversion ?? true,
// 表格处理操作（筛选、排序、条件样式等）
// !!!错误使用可能导致文档被意外修改!!!
process: input?.$process ?? (data=>data)
}
/**
* 主函数 - 执行数据库查询和渲染
*/
async function renderDatabase() {
try {
// 1. 获取文件元数据
const tarData = CONFIG.tarPath
? dv.page(CONFIG.tarPath)
: dv.current()
CONFIG.tarPath = tarData.file.path
CONFIG.tableHead ??= CONFIG.tarData.file.name
const fileMeta = await app.metadataCache.getCache(CONFIG.tarPath)
if (!fileMeta?.headings) {
dv.span("目标文档缺少标题或无法读取")
return
}
// 2. 过滤标题
const headingsList = filterHeadings(fileMeta.headings, CONFIG.headingLv)
if (headingsList.length === 0) {
const levelMsg = CONFIG.headingLv ? `级别 ${CONFIG.headingLv}` : "所有级别"
dv.span(`目标文档没有找到${levelMsg}的标题`)
return
}
// 3. 读取并解析内容
const tarFile = await app.vault.getFileByPath(CONFIG.tarPath)
if (!tarFile) {
dv.span("目标文档未找到")
return
}
const content = await app.vault.cachedRead(tarFile)
const matches = getMetadata(content.split('\n'), headingsList, CONFIG.headingLv)
if (matches.length === 0) {
dv.span("未找到有效的元数据")
return
}
// 4. 处理数据
const tableData = toTableData(matches)
const finalData = CONFIG.process(tableData)
if (!(finalData instanceof TableData)) {
dv.span("表格处理操作出错")
return
}
// 5. 渲染表格
renderTable(finalData, tarFile)
} catch (e) {
dv.span(`处理文档时出错: ${e.message}`)
console.error(e.message, e.stack)
}
}
/**
* 过滤标题
*/
function filterHeadings(headings, targetLevel) {
if (targetLevel && targetLevel >= 1 && targetLevel <= 6) {
return headings
.filter(k => k.level === targetLevel)
.map(k => k.heading)
}
return headings.map(k => k.heading)
}
/**
* 获取元数据
*/
function getMetadata(lines, headingsList, targetLevel) {
const matches = []
let currentTitle = null
let collecting = false
let currentMetaLines = []
for (let i = 0; i < lines.length; i++) {
const line = lines[i]
if (line.trim() === '') continue
const headingMatch = line.match(/^(#{1,6})\s+(.+)$/)
if (headingMatch) {
// 保存上一个标题的数据
if (currentTitle && currentMetaLines.length > 0) {
matches.push({ title: currentTitle, metaLines: currentMetaLines })
}
// 开始新标题
const level = headingMatch[1].length
const title = headingMatch[2].trim()
currentTitle = title
currentMetaLines = []
// 检查是否为目标标题
const isTargetLevel = !targetLevel || level === targetLevel
collecting = isTargetLevel && headingsList.includes(title)
} else if (collecting && isMetadataLine(line)) {
currentMetaLines.push(line.trim())
} else if (collecting) {
collecting = false
}
}
// 添加最后一个标题的数据
if (currentTitle && currentMetaLines.length > 0) {
matches.push({ title: currentTitle, metaLines: currentMetaLines })
}
return matches
}
/**
* 检查是否为元数据行
*/
function isMetadataLine(line) {
const trimmedLine = line.trim()
const metadataPattern = /^(\s*\[.*?::.*?\])+\s*$/
return metadataPattern.test(trimmedLine)
}
/**
* 处理原始数据生成表格数据
*/
function toTableData(matches) {
const tableHeads = [CONFIG.tableHead]
const metaValues = []
const allKeys = new Set()
// 第一次遍历：收集所有可能的键
matches.forEach(match => {
match.metaLines.forEach(line => {
extractKeyValuePairs(line).forEach(({ key }) => {
if (key) allKeys.add(key)
})
})
})
// 构建表头
tableHeads.push(...Array.from(allKeys))
// 第二次遍历：填充数据
matches.forEach(match => {
const rowData = new Array(tableHeads.length).fill("")
rowData[0] = `[[#${match.title}]]`
// 解析该标题下的元数据
const metaDict = parseMetaLines(match.metaLines)
// 填充数据到对应列
Object.entries(metaDict).forEach(([key, value]) => {
const index = tableHeads.indexOf(key)
if (index > 0) {
rowData[index] = new Cell(match.title, key, value)
}
})
metaValues.push(rowData)
})
return new TableData(tableHeads, metaValues)
}
/**
* 解析多行元数据
*/
function parseMetaLines(metaLines) {
const metaDict = {}
metaLines.forEach(line => {
extractKeyValuePairs(line).forEach(({ key, value }) => {
if (!key) return
metaDict[key] = value
})
})
return metaDict
}
/**
* 从一行中提取键值对
*/
function extractKeyValuePairs(line) {
const kvPairs = []
const stack = []
let currentPart = ''
let startIndex = -1
let inMetadata = false
for (let i = 0; i < line.length; i++) {
const char = line[i]
if (char === '[') {
if (stack.length === 0) {
startIndex = i
currentPart = ''
inMetadata = true
}
stack.push(char)
if (stack.length > 1) currentPart += char
}
else if (char === ']') {
if (stack.length === 0) continue
stack.pop()
if (stack.length === 0 && inMetadata && currentPart.includes('::')) {
const parts = currentPart.split('::')
if (parts.length >= 2) {
const key = parts[0].trim()
let value = parts.slice(1).join('::').trim()
if (key) kvPairs.push({ key, value })
}
inMetadata = false
}
else if (stack.length > 0) {
currentPart += char
}
}
else if (stack.length > 0) {
currentPart += char
}
}
return kvPairs
}
/**
* 将字符串转换为相应的类型
* 支持的类型转换：
* * 空字符串 null
* * 单、双、反引号包裹的字符串
* * 函数 xxx(yyy)
* * * 默认 dv 表达式 (evaluate)
* * dv 表达式
* * * 字符串应使用双引号，无法识别单引号
* * * 支持列表、对象
* * dv 默认类型
*/
function parse(str) {
// 空字符串
if (str==='') return null
// 强制字符串类型：引号['"`]包裹
const quotedStringRegex = /^(['"`])(.*)\1$/
const quotedMatch = str.match(quotedStringRegex)
if (quotedMatch) {
return quotedMatch[2]
}
// 函数类型
const funcPattern = /^([a-zA-Z_$]?[a-zA-Z0-9_$]*)\((.*)\)$/
const match = str.match(funcPattern)
if (match) {
const func = new FuncValue(match[1], match[2], str)
return func.tryCall()
}
// 检查 Dataview 表达式
const result = dv.evaluate(str)
if (result.successful && result.value) return result.value
// dv 默认类型
return dv.parse(str)
}
/**
* 将值转换用于显示
*/
function toShow(value, format) {
if (value === true) return `<input type="checkbox" checked=true disabled=true />`
if (value === false) return `<input type="checkbox" disabled=true />`
if (Array.isArray(value)) {
return (format?.includes('array-csv'))
? value.map(v => toShow(v)).join(', ')
: value
}
if (value instanceof FuncValue) value = String(value)
if (typeof value === 'number') {
value = String(value)
}
if (typeof value === 'string') {
if (format?.includes('*')) value = `*${value}*`
if (format?.includes('**')) value = `**${value}**`
if (format?.includes('~~')) value = `~~${value}~~`
if (format?.includes('==')) value = `==${value}==`
}
return value
}
/**
* 渲染表格
*/
function renderTable(data, tarFile) {
const { heads, rows } = data
dv.table(heads, rows.map(row=>row.map((cell)=>{
if (!(cell instanceof BaseCell)) return toShow(cell)
if (!(cell instanceof Cell)) {
if (cell?.css) {
const el = dv.paragraph(cell.show)
el.style.cssText += cell.cssText
return el
}
return cell.show
}
const cellEl = dv.container.createEl("div")
if (cell?.css) {
cellEl.style.cssText += cell.css
}
const showEl = dv.paragraph(cell.show)
showEl.style.height = "auto"
showEl.style.padding = "0"
showEl.style.margin = "0"
const inputEl = dv.container.createEl("input", {
"type": "text",
"value": cell.rawV
})
inputEl.style.display = "none"
inputEl.style.height = "auto"
showEl.addEventListener('click', async (evt) => {
showEl.style.display = "none"
inputEl.style.display = "unset"
inputEl.focus()
})
inputEl.addEventListener('change', async (evt) => {
updateMetadata(tarFile, cell, inputEl.value)
inputEl.style.display = "none"
showEl.style.display = "unset"
})
inputEl.addEventListener('blur', async (evt) => {
inputEl.style.display = "none"
showEl.style.display = "unset"
})
cellEl.appendChild(showEl)
cellEl.appendChild(inputEl)
return cellEl
})))
}
/**
* 更新元数据
*/
async function updateMetadata(tarFile, cell, newV) {
await app.vault.process(tarFile, content => {
const lines = content.split('\n')
let inTargetSection = false
for (let i = 0; i < lines.length; i++) {
const line = lines[i]
const isHeading = line.match(/^#{1,6}\s/)
// 标题行处理
if (isHeading) {
const level = isHeading[0].trim().length
const title = line.replace(/^#{1,6}\s+/, '').trim()
const isTarget = (CONFIG.headingLv === 0)
? (title === cell.title)
: (level === CONFIG.headingLv && title === cell.title)
inTargetSection = isTarget
}
// 非标题行：检查是否应退出目标区域
else if (inTargetSection && !isMetadataLine(line)) {
inTargetSection = false
}
// 在目标区域内且是元数据行时进行替换
if (inTargetSection && isMetadataLine(line)) {
const pattern = new RegExp(`(\\[\\s*)${RegExp.escape(cell.rawK)}(\\s*::\\s*)${RegExp.escape(cell.rawV)}(\\s*\\])`)
if (pattern.test(line)) {
lines[i] = line.replace(pattern, `$1${cell.rawK}$2${newV}$3`)
cell.rawV = newV
}
}
}
return lines.join('\n')
})
}
// 执行主函数
renderDatabase()
/**
* 表格单元格
*/
class BaseCell {
constructor(value) {
this._value = value
}
get value() {
return this._value
}
get show() {
return toShow(this.value, this?.format)
}
}
class Cell extends BaseCell {
title; rawK; rawV
constructor(title, rawK, rawV) {
super(undefined, true)
this.title = title
this.rawK = rawK
this.rawV = rawV
}
get value() {
return CONFIG.enableTypeConversion
? parse(this.rawV) : this.rawV
}
}
/**
* 元数据值：函数类型
*/
class FuncValue {
constructor(funcName, args, str) {
this.funcName = funcName
this.args = args
this.toString = () => str
}
tryCall() {
let result
switch (this.funcName) {
case '':
case 'evaluate':
result = dv.evaluate(this.args)
if (result.successful) return result.value
break
default:
result = dv.evaluate(this.toString())
if (result.successful) return result.value
break
}
return this
}
}
/**
* 表格数据，实现了筛选、排序等功能
*/
class TableData {
heads; rows
constructor(heads, rows) {
this.heads = heads
this.rows = rows
}
/**
* 任意处理表格，慎用
*/
$then(dataToAny) {
dataToAny(this)
return this
}
$newCell(value) {
return new BaseCell(value)
}
_forId(id, toAny) {
if (Array.isArray(id)) {
for (let _ of id) this._forId(_, toAny)
return this
}
if (typeof id === 'string') {
id = this.heads.indexOf(id)
}
if (id >= 0) toAny(id)
return this
}
_forCell(id, toAny) {
return this._forId(id, id => {
for (let row of this.rows) {
let cell = row[id]
if (cell instanceof BaseCell) {
toAny(cell)
}
}
})
}
/**
* 条件样式
*/
addCss(id, valueToBool, css) {
return this._forCell(id, cell => {
if (valueToBool(cell.value)) {
cell.css = (cell?.css ?? '') + css
}
})
}
addColor(id, valueToBool, color) {
return this.addCss(id, valueToBool, `color: ${color};`)
}
addBackground(id, valueToBool, bg) {
return this.addCss(id, valueToBool, `background: ${bg};`)
}
addFormat(id, valueToBool, format) {
return this._forCell(id, cell => {
if (valueToBool(cell.value)) {
cell.format = (cell?.format)
? cell.format.push(format)
: [format]
}
})
}
/**
* 筛选
*/
filter(id, valueToBool) {
return this._forId(id, id => {
this.rows = this.rows.filter(row => {
let value = row[id]
if (value instanceof BaseCell) {
value = value.value
}
return valueToBool(value)
})
})
}
/**
* 排序
*/
sort(id, abToTernary) {
return this._forId(id, id => {
this.rows.sort((rowA, rowB) => {
let a = rowA[id], b = rowB[id]
if (a instanceof BaseCell) a = a.value
if (b instanceof BaseCell) b = b.value
return abToTernary ? abToTernary(a, b) : dv.compare(a, b)
})
})
}
reverse() {
this.rows.reverse()
return this
}
/**
* 列顺序
* 如果是永久调换建议直接修改第一个标题下元数据顺序
*/
colsOrder(ids, isComplete) {
if (!Array.isArray(ids)) ids = [ids]
ids = ids
.map(id => (typeof id === 'string') ? this.heads.indexOf(id) : id)
.filter(id => id >= 0)
if (isComplete && ids.length < this.heads.length) {
ids = ids.concat([...this.heads.keys()].filter(i=>!ids.includes(i)))
}
this.rows = this.rows.map(row=>ids.map(id=>row[id]))
this.heads = ids.map(id => this.heads[id])
return this
}
colsHide(ids) {
if (!Array.isArray(ids)) ids = [ids]
ids = ids
.map(id => (typeof id === 'string') ? this.heads.indexOf(id) : id)
.filter(id => id >= 0)
return this.colsOrder([...this.heads.keys()].filter(i=>!ids.includes(i)))
}
/**
* 添加列
* toValue: (行序号, 行, 所有行, 表头) => 单元格值
*/
addCol(colName, toValue) {
this.heads.push(colName)
const table = this._table
this.rows.forEach((row, i) =>
row.push(new BaseCell(toValue(i, table[i], table, this.heads)))
)
return this
}
/**
* 添加行
* toValue: (列序号, 列, 所有列, 表头) => 单元格值
*/
addRow(rowName, toValue) {
const trans = this._trans
let newRow = this.rows[0].map((_, i) =>
new BaseCell(toValue(i, trans[i], trans, this.heads))
)
newRow[0] = rowName ?? newRow[0]
this.rows.push(newRow)
return this
}
/**
* 设置值
* toValue: (原值, 所有行, 表头) => 单元格值
*/
setValue(rowId, colId, toValue) {
if (typeof colId === 'string') colId = this.heads.indexOf(colId)
const headings = this._headings
if (typeof rowId === 'string') rowId = headings.indexOf(`[[#${rowId}]]`)
if (rowId === -1) rowId = headings.indexOf(rowId)
if (colId>=0 && rowId>=0) {
let value = this.rows[rowId][colId]
if (value instanceof BaseCell) value = value.value
const table = this._table
this.rows[rowId][colId] = new BaseCell(toValue(value, table, this.heads))
}
return this
}
setHead(id, head) {
if (typeof id === 'string') id = this.heads.indexOf(id)
this.heads[id] = head
return this
}
/**
* 纯值表格，不含表头
*/
get _table() {
return this.rows.map(row=>row.map(cell =>
(cell instanceof BaseCell) ? cell.value : cell
))
}
/**
* 纯值转置表格，不含表头
*/
get _trans() {
return this.rows[0].map((_,i)=>this.rows.map(row =>
(row[i] instanceof BaseCell) ? row[i].value : row[i]
))
}
get _headings() {
return this.rows.map(row => row[0])
}
}
