obsidian mermaid 错误

---

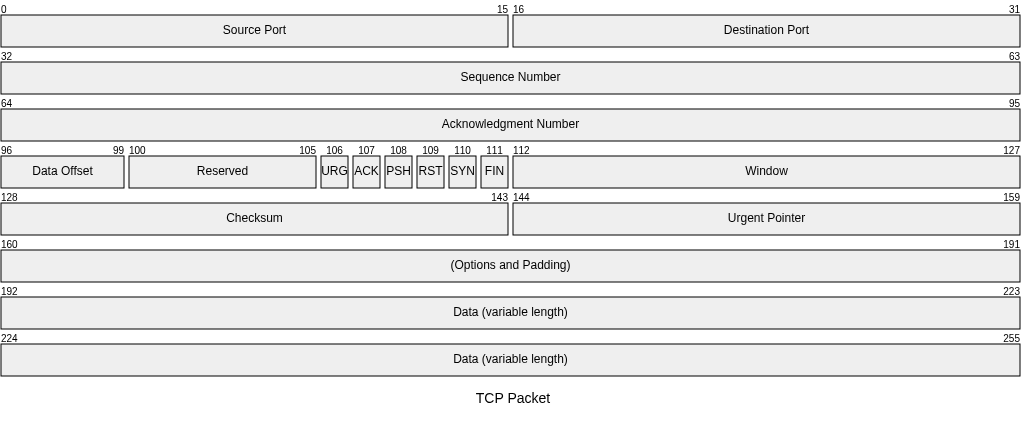

title: "TCP Packet"
---
packet-beta

0-15: "Source Port"
16-31: "Destination Port"
32-63: "Sequence Number"
64-95: "Acknowledgment Number"
96-99: "Data Offset"
100-105: "Reserved"
106: "URG"
107: "ACK"
108: "PSH"
109: "RST"
110: "SYN"
111: "FIN"
112-127: "Window"
128-143: "Checksum"
144-159: "Urgent Pointer"
160-191: "(Options and Padding)"
192-255: "Data (variable length)"

麻烦各位大佬解惑,十分感谢

似乎是因为 Ob 里的 mermaid 版本不够高

Ob 用的是 v10.6.1

而这个数据包图要求 v11.0.0, 见 Packet Diagram (v11.0.0+) | Mermaid

这 Mermaid 版本, Ob 官方应该会升级的, 具体时间不好说, 见 Recurrent Upgrade mermaid.js to the latest version x.y.z - Feature requests


所以目前办法, 可能最简单是找个在线 Mermaid 工具站, 例如 Online FlowChart & Diagrams Editor - Mermaid Live Editor
把图在线做出来, 然后外链也好, 下载 svg 也好, 先在 Ob 里用着

感谢大佬的讲解,十分感谢。 :+1: :+1: :+1: :+1: :+1:
